Thermal Analysis Consumables

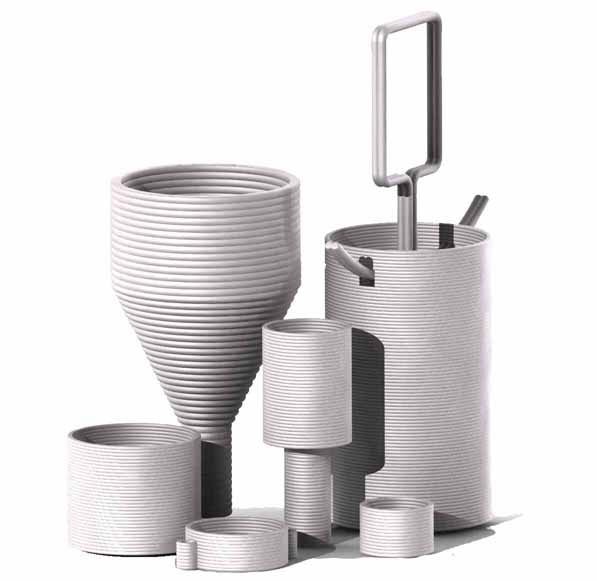

We fabricate competitively-priced thermal analysis labware. Our patented printing process allows us to fabricate crucibles and fixtures with ultra-thin walls and the highest sample volume capacity/crucible thermal mass on the market. The results are an improved signal-to-noise ratio and faster temperature response.

Custom shapes as well as drop-in replacement parts can be fabricated from a wide variety of ceramics and metals.

Contact us to request a quote on other sizes and materials options.



Standard Crucibles
Part # Capacity (µL) Diameter (mm) Height (mm) Suitable for Instrument Material Price:
SC-30-60-26-A 30 6.0 2.6 Mettler Toledo TGA/DSC 1 99.8% Al2O3 $8.00
SC-70-60-45-A 70 6.0 4.5 Mettler Toledo TGA/DSC 1 99.8% Al2O3 $9.00
SC-100-62-55-A 100 6.2 5.5 TA Instruments
(Q600, Q2960)		 99.8% Al2O3 $10.00
SC-100-66-43-A 100 6.6 4.3 Netzsch STA (Jupiter,429,409)
Netzch TGA (Jupiter,429,409,Tarsus,Iris)
Netzsch DSC
(Pegasus Series,Pheonix)		 99.8% Al2O3 $10.00
SC-140-66-55-A 140 6.6 5.5 Netzsch STA (Jupiter,429,409)
Netzch TGA (Jupiter,429,409,Tarsus,Iris)
Netzsch DSC
(Pegasus Series,Pheonix)		 99.8% Al2O3 $10.20
SC-150-80-45-A 150 8.0 4.5 Mettler Toledo TGS/DSC 1 99.8% Al2O3 $11.00
SC-900-120-100-A 900 12.0 10.0 Mettler Toledo TGA/DSC 1 99.8% Al2O3 $44.00
__-__-__-__-__
(Custom Built)		 - - - - - price





Hanging Crucibles
Part # Capacity (µL) Diameter (mm) Height (mm) Suitable for Instruments Material Price:
HB-350-120-80-A 350 12.0 8.0 - 99.8% Al2O3 $22.00
HB-400-95-100-A 400 9.5 10.0 TA Instruments
(Q500, Q5000)		 99.8% Al2O3 $17.00
HB-2750-150-250-A 2750 15.0 25.0 Thermal Cahn
Thermax 700 TGA		 99.8% Al2O3 $40.00
HC-150-92-35-A 150 9.2 3.5 TA Instruments
(Q500, Q5000)		 99.8% Al2O3 $30.00
__-__-__-__-__
(Custom Built)		 - - - - - price





Hanging Crucible Hangers
Part # Diameter (mm) Suitable for Crucibles Material Price:
HBH1-150-A 15.0 HB-2750-150-250-A 99.8% Al2O3 $5.00
HBH2-150-A 15.0 HB-2750-150-250-A 99.8% Al2O3 $5.00
__-__-__-__-__
(Custom Built)		 - - - price





Post Mounted Crucibles
Part # Capacity (µL) Diameter (mm) Height (mm) Suitable for Instruments Material Price:
PM25-100-60-60-A 100 6.0 6.0 Fits thermocouple tubes 2.5 mm in diameter 99.8% Al2O3 $10.00
PM25-400-80-100-A 400 8.0 10.0 TA Instruments
(Q500, Q5000)
Fits thermocouple tubes 2.5 mm in diameter		 99.8% Al2O3 $11.00
PM20-400-80-100-A 400 8.0 10.0 Fits thermocouple tubes 2.0 mm in diameter 99.8% Al2O3 $11.00
PM25-2500-170-200-A 2500 17.0 20.0 Fits thermocouple tubes 2.5 mm in diameter 99.8% Al2O3 $19.00
__-__-__-__-__
(Custom Built)		 - - - - - price




Standard Lids
Part # Diameter (mm) Suitable for Part #'s Material Price:
SL-60-A 6.0 SC-30-60-26-A
SC-70-60-45-A		 99.8% Al2O3 $4.00
SL-62-A 6.2 SC-100-62-55-A 99.8% Al2O3 $4.00
SL-66-A 6.6 SC-100-66-55-A 99.8% Al2O3 $4.00
SL-80-A 8.0 SC-150-80-45-A 99.8% Al2O3 $4.00
SL-120-A 12.0 SC-900-120-100-A 99.8% Al2O3 $6.00
__-__-__
(Custom Built)		 - - - price
